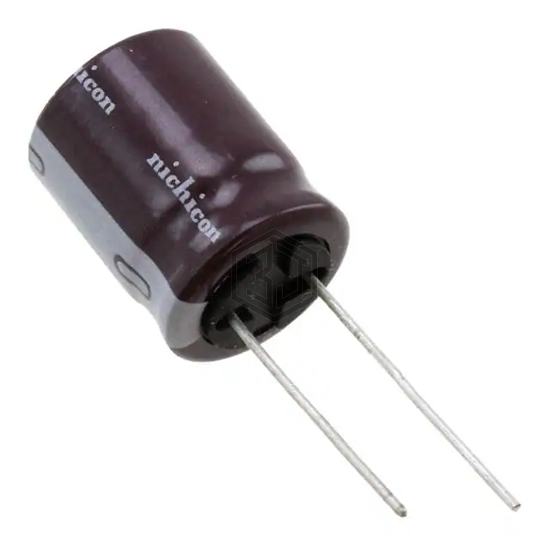

CAP ALUM 68UF 20% 250V RADIAL
UCY2E680MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ251ELL680MK25S | United Chemi-Con | CAP ALUM 68UF 20% 250V RADIAL | 94% | View |
| EKXJ351ELL680MK35S | United Chemi-Con | CAP ALUM 68UF 20% 350V RADIAL | 84% | View |
| 601D686F300GL7 | Vishay Sprague | CAP ALUM 68UF 300V AXIAL | 82% | View |
| EKXJ451ELL680MLP1S | United Chemi-Con | CAP ALUM 68UF 20% 450V RADIAL | 76% | View |
| 500LXW68MEFR18X35 | Rubycon | CAP ALUM 68UF 20% 500V RADIAL | 75% | View |
| B43504A5686M60 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 67% | View |
