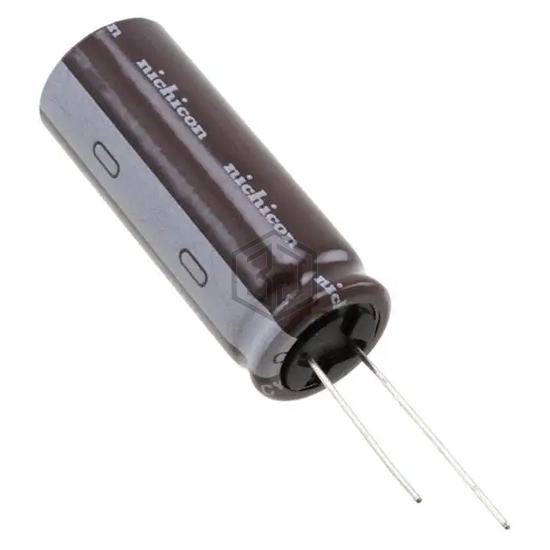

CAP ALUM 330UF 20% 250V RADIAL
UCY2E331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.870" (47.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504D2337M82 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 89% | View |
| MAL219356331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 400V SNAP | 79% | View |
| B43508A5337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 450V SNAP | 73% | View |
| EKZE500ELL331MJ25S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 67% | View |
| MAL212028331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 64% | View |
| EEU-FM1V331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 59% | View |
Submit your RFQ for UCY2E331MHD and get a quote within 24 hours.
