CAP ALUM 270UF 20% 250V RADIAL

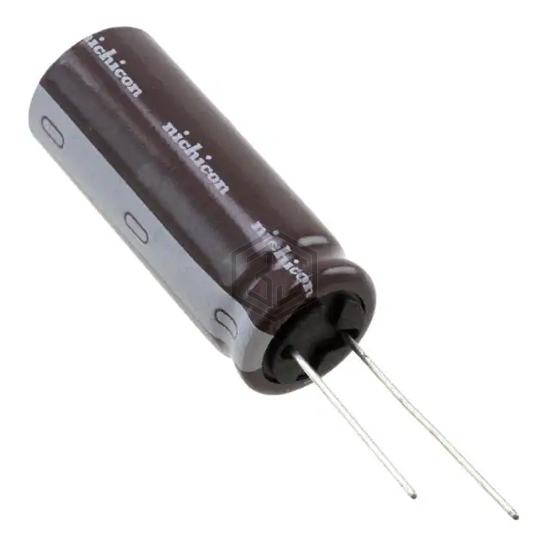

UCY2E271MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 5,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ221ELL271MU50S | United Chemi-Con | CAP ALUM 270UF 20% 220V RADIAL | 93% | View |
| EKXJ201ELL271MK50S | United Chemi-Con | CAP ALUM 270UF 20% 200V RADIAL | 91% | View |
| B43504B2277M7 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 90% | View |
| B43504B277M87 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 420V SNAP | 79% | View |
| LDQ2D271MERYGA | Nichicon | CAP ALUM 270UF 20% 200V RADIAL | 77% | View |
| B43508C5277M060 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 75% | View |
Submit your RFQ for UCY2E271MHD6 and get a quote within 24 hours.
