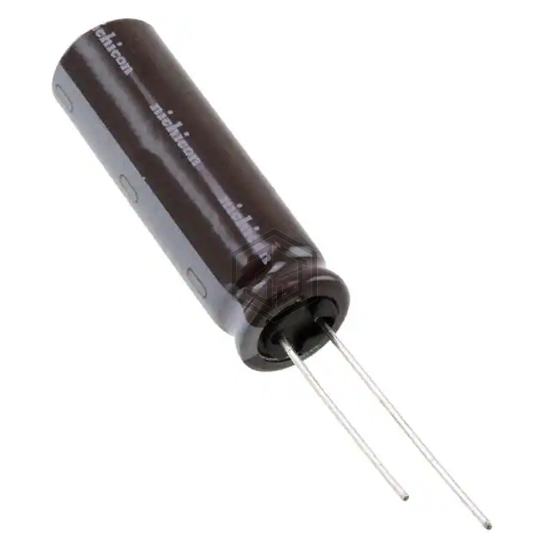

CAP ALUM 150UF 20% 250V RADIAL
UCY2E151MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 4,057
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.98 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07AB315P02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% SNAP | 100% | View |
| MAL219336151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 79% | View |
| B43505A9157M80 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 79% | View |
| B43509B9157M080 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 77% | View |
| B43504A157M87 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 420V SNAP | 74% | View |
| 600D157G050DL5 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 56% | View |
Submit your RFQ for UCY2E151MHD6 and get a quote within 24 hours.
