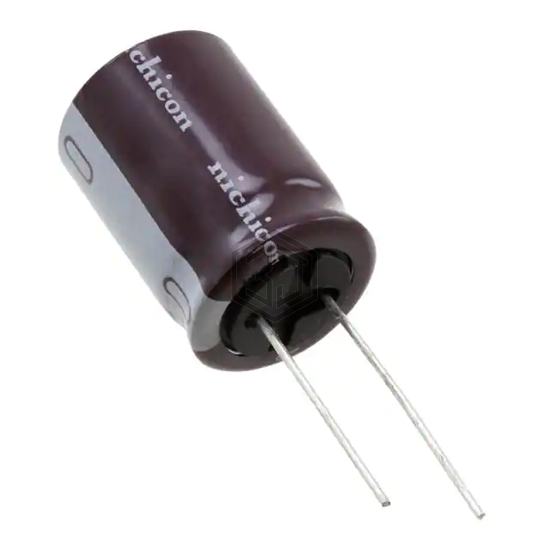

CAP ALUM 150UF 20% 250V RADIAL
UCY2E151MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 970 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.94 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420LXW150MEFR16X40 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 82% | View |
| 381LX151M315H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 315V SNAP | 75% | View |
| B43508B9157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 73% | View |
| EKXJ161ELL151MJ45S | United Chemi-Con | CAP ALUM 150UF 20% 160V RADIAL | 73% | View |
| B43508C5157M87 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 73% | View |
| LP151M450C7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 450V SNAP | 62% | View |
Submit your RFQ for UCY2E151MHD1TN and get a quote within 24 hours.
