CAP ALUM 120UF 20% 250V RADIAL

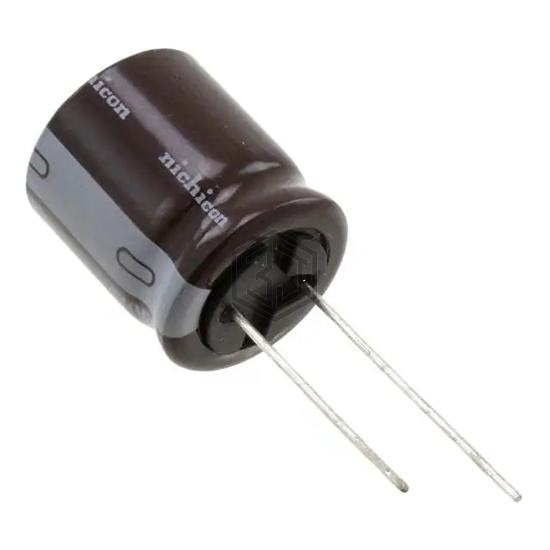

UCY2E121MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 1,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 815 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.63 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KXG400VB121M18X35LL | United Chemi-Con | CAP ALUM 120UF 20% 400V RADIAL | 80% | View |
| B43508A9127M2 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 75% | View |
| 420QXW120MEFR16X35 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 75% | View |
| EGXF161ELL121MJ40S | United Chemi-Con | CAP ALUM 120UF 20% 160V RAD TH | 73% | View |
| 50ZLJ120MT78X16 | Rubycon | CAP ALUM 120UF 20% 50V RADIAL | 62% | View |
| 672D127H060DS5C | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 56% | View |
Submit your RFQ for UCY2E121MHD6 and get a quote within 24 hours.
