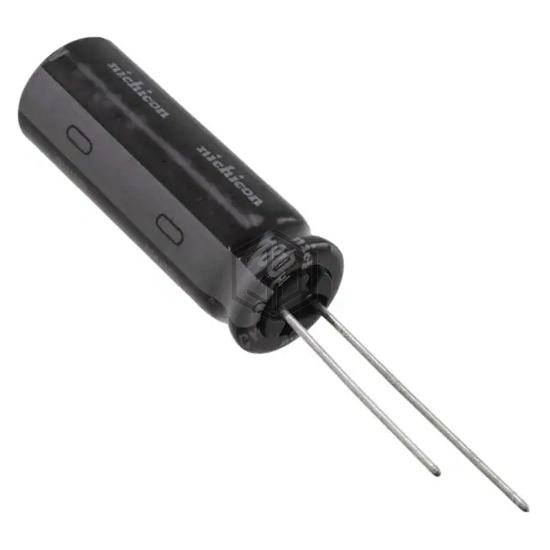

CAP ALUM 100UF 20% 250V RADIAL
UCY2E101MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 785 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.57 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL401ELL101MK50S | United Chemi-Con | CAP ALUM 100UF 20% 400V RAD TH | 83% | View |
| EKXJ161ELL101MK20S | United Chemi-Con | CAP ALUM 100UF 20% 160V RADIAL | 74% | View |
| B43504A107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 420V SNAP | 72% | View |
| 100YXJ100MT810X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 67% | View |
| ELXY350ETC101MHB5D | United Chemi-Con | CAP ALUM 100UF 20% 35V RADIAL | 56% | View |
| 672D107H020CG5I | Vishay Sprague | CAP ALUM 100UF 20V RADIAL | 56% | View |
Submit your RFQ for UCY2E101MHD6 and get a quote within 24 hours.
