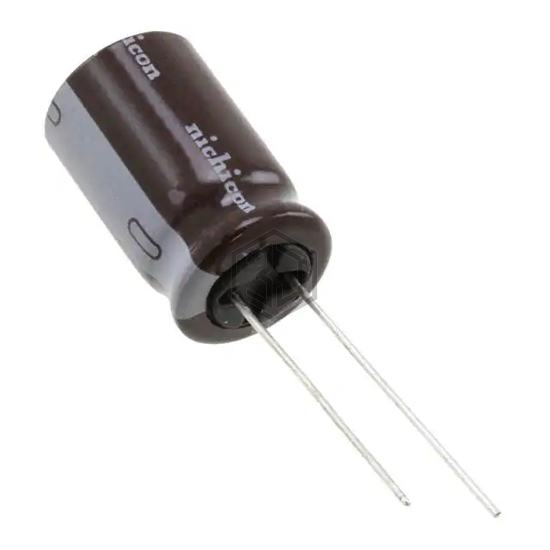

CAP ALUM 82UF 20% 200V RADIAL
UCY2D820MHD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 2,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.29 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D826F250GP2 | Vishay Sprague | CAP ALUM 82UF 250V AXIAL | 86% | View |
| EKXJ161ELL820MJ25S | United Chemi-Con | CAP ALUM 82UF 20% 160V RADIAL | 77% | View |
| 450TXW82MEFR16X40 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL TH | 72% | View |
| 420HXW82MEFR10X60 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 72% | View |
| EKXL451ELL820MK50S | United Chemi-Con | CAP ALUM 82UF 20% 450V RADIAL TH | 71% | View |
| 400TXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 69% | View |
Submit your RFQ for UCY2D820MHD9 and get a quote within 24 hours.
