CAP ALUM 68UF 20% 200V RADIAL

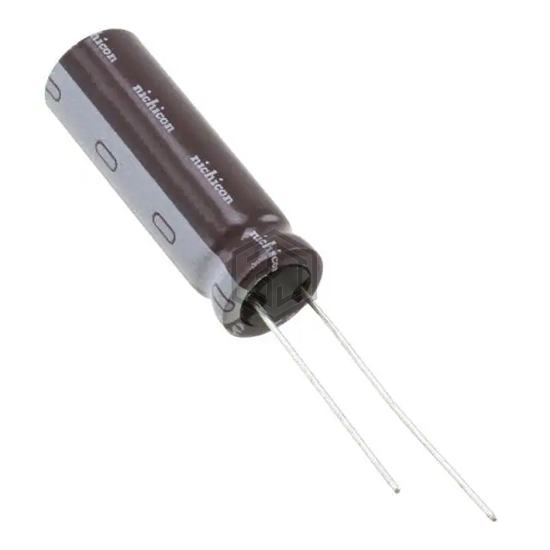

UCY2D680MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 485 mA @ 120 Hz |
| Ripple Current @ High Frequency | 970 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2D680MHD | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 86% | View |
| MAL215262689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 200V RADIAL | 85% | View |
| 400HXW68MEFR10X45 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 73% | View |
| EGXF351ELL680MU35S | United Chemi-Con | CAP ALUM 68UF 20% 350V RADIAL TH | 72% | View |
| B43504A5686M80 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 70% | View |
| B43504A9686M80 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 400V SNAP | 70% | View |
Submit your RFQ for UCY2D680MPD and get a quote within 24 hours.
