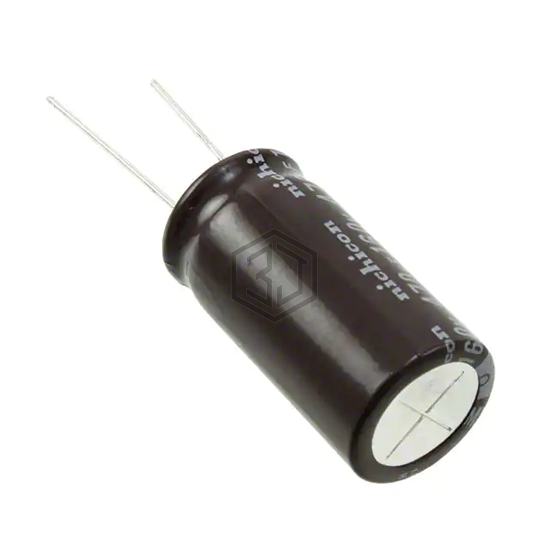

CAP ALUM 390UF 20% 200V RADIAL
UCY2D391MHD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.38 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2397M87 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 89% | View |
| 601D397F250JT7 | Vishay Sprague | CAP ALUM 390UF 250V AXIAL | 86% | View |
| B43508F2397M82 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 82% | View |
| B43504B9397M7 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 71% | View |
| B41789A8397Q001 | EPCOS - TDK Electronics | CAP ALUM 390UF 63V RADIAL | 69% | View |
| B43545C9397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 62% | View |
