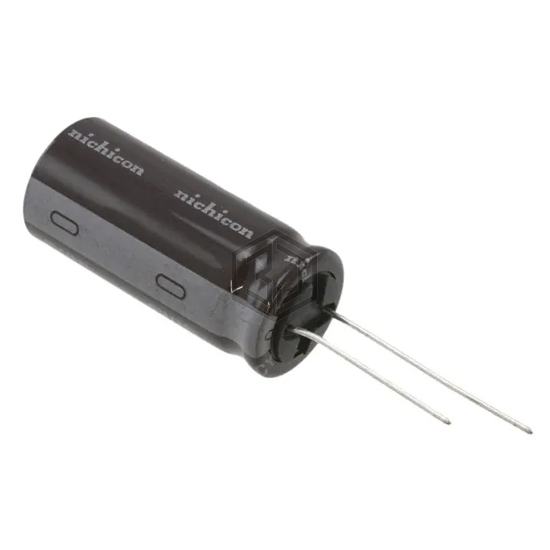

CAP ALUM 270UF 20% 200V RADIAL
UCY2D271MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ161ELL271MK45S | United Chemi-Con | CAP ALUM 270UF 20% 160V RADIAL | 90% | View |
| MAL225943271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 250V SNAP | 86% | View |
| MAL219326271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 400V SNAP | 72% | View |
| B43644B5277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 70% | View |
| B43504B277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 420V SNAP | 70% | View |
| B43504B277M7 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 420V SNAP | 70% | View |
Submit your RFQ for UCY2D271MHD and get a quote within 24 hours.
