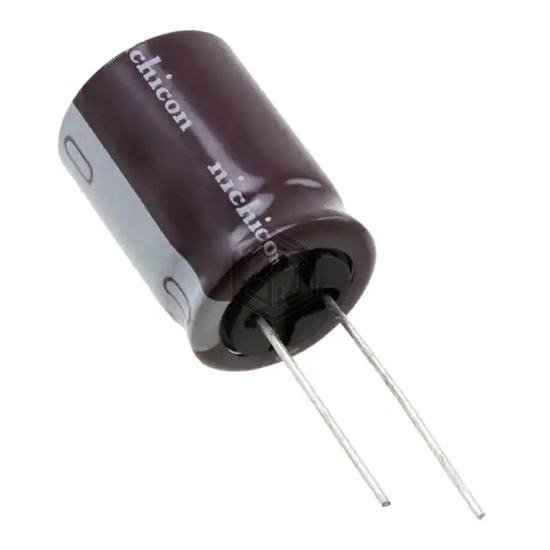

CAP ALUM 220UF 20% 200V RADIAL
UCY2D221MHD3TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.185 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.37 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2P221MELY25 | Nichicon | CAP ALUM 220UF 20% 220V SNAP | 81% | View |
| B43504C5227M60 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 71% | View |
| B43504B5227M62 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 71% | View |
| B43508A5227M60 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 70% | View |
| EKMZ451VSN221MP35S | United Chemi-Con | CAP ALUM 220UF 20% 450V SNAP | 69% | View |
| B43508C5227M82 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 69% | View |
Submit your RFQ for UCY2D221MHD3TN and get a quote within 24 hours.
