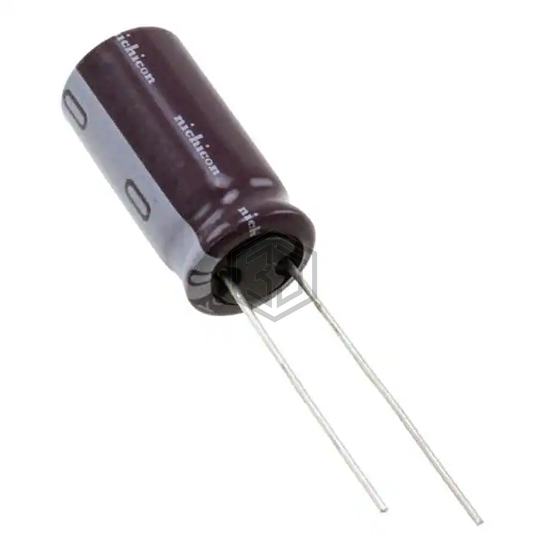

CAP ALUM 47UF 20% 160V RADIAL
UCY2C470MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212029479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V AXIAL | 80% | View |
| 200YXF47MEFC12.5X25 | Rubycon | CAP ALUM 47UF 20% 200V RADIAL | 77% | View |
| UCY2V470MHD3TN | Nichicon | CAP ALUM 47UF 20% 350V RADIAL | 61% | View |
| MAL215257479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 450V RADIAL | 60% | View |
| UBW1K470MPD1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 58% | View |
| UCS2G470MHD6TN | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 57% | View |
