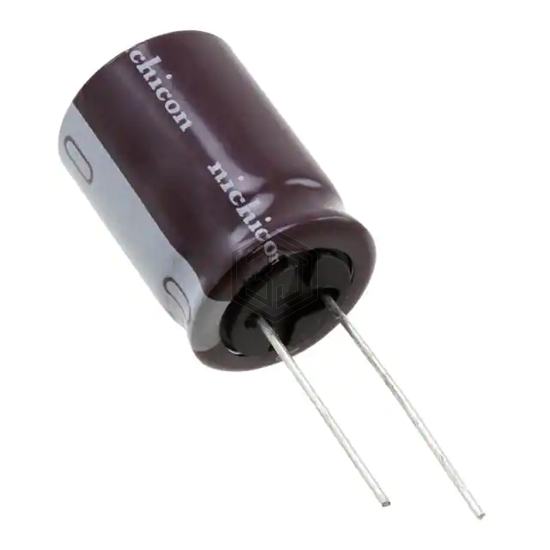

CAP ALUM 330UF 20% 160V RADIAL
UCY2C331MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.445 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ201ELL331ML40S | United Chemi-Con | CAP ALUM 330UF 20% 200V RADIAL | 90% | View |
| MAL225953331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 250V SNAP | 80% | View |
| ELHS4H1VSN331MA35S | United Chemi-Con | CAP ALUM 330UF 20% 475V SNAP | 71% | View |
| LKX2E331MESZ35 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 71% | View |
| 80ZLJ330MGC16X20 | Rubycon | CAP ALUM 330UF 20% 80V RADIAL | 62% | View |
| EEU-TA1J331SB | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 61% | View |
Submit your RFQ for UCY2C331MHD6 and get a quote within 24 hours.
