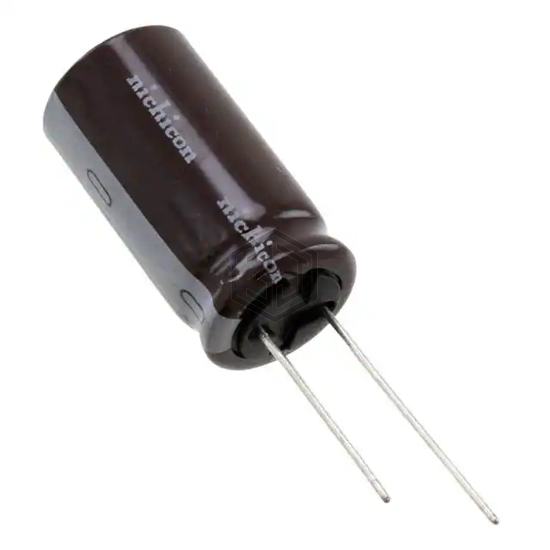

CAP ALUM 330UF 20% 160V RADIAL
UCY2C331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 2,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.02 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXG161ELL331MMN3S | United Chemi-Con | CAP ALUM 330UF 20% 160V RADIAL | 97% | View |
| LGN2Z331MELY25 | Nichicon | CAP ALUM 330UF 20% 180V SNAP | 79% | View |
| B43508E2337M7 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 73% | View |
| B43504D2337M60 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 73% | View |
| B43544B9337M080 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 66% | View |
| 63ZL330MEFC12.5X25 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 59% | View |
Submit your RFQ for UCY2C331MHD and get a quote within 24 hours.
