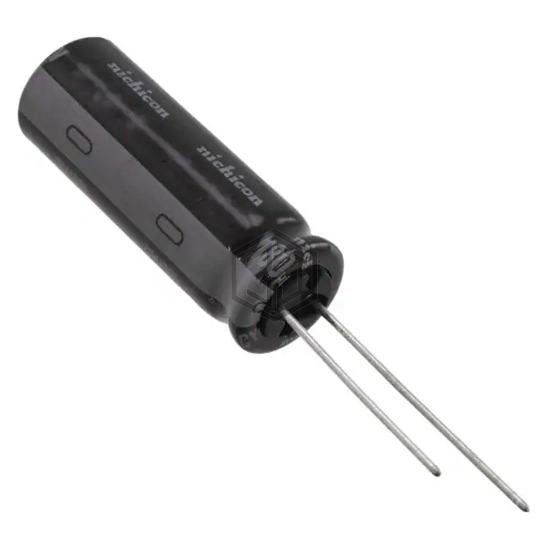

CAP ALUM 220UF 20% 160V RADIAL
UCY2C221MHD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2D221MNY9 | Nichicon | CAP ALUM 220UF 20% 200V RADIAL | 86% | View |
| 100TXW220MEFC10X40 | Rubycon | CAP ALUM 220UF 20% 100V RADIAL | 75% | View |
| 227KFM250MLCG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 250V RADIAL | 74% | View |
| EKHF401ELL221MM40S | Chemi-Con | CAP ALUM 220UF 20% 400V TH | 72% | View |
| MAL225967221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 69% | View |
| B43548C6227M060 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 500V SNAP | 52% | View |
