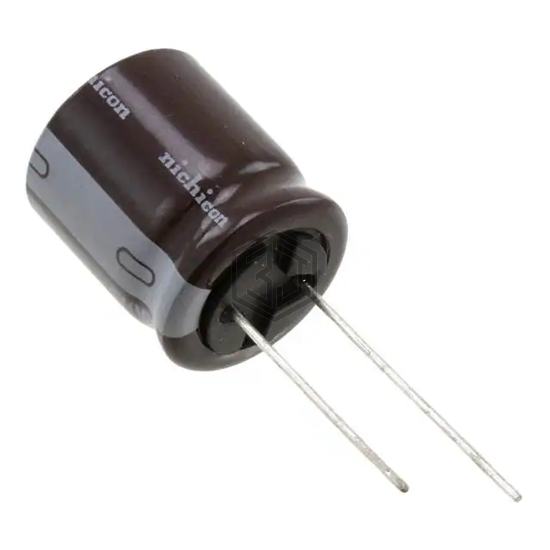

CAP ALUM 220UF 20% 160V RADIAL
UCY2C221MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.105 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508C5227M2 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 71% | View |
| B43644F9227M000 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 71% | View |
| MAL214252221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 200V RADIAL | 69% | View |
| MAL219377221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 69% | View |
| MAL216036221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 56% | View |
| 16YXG220MEFCT78X11.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UCY2C221MHD6 and get a quote within 24 hours.
