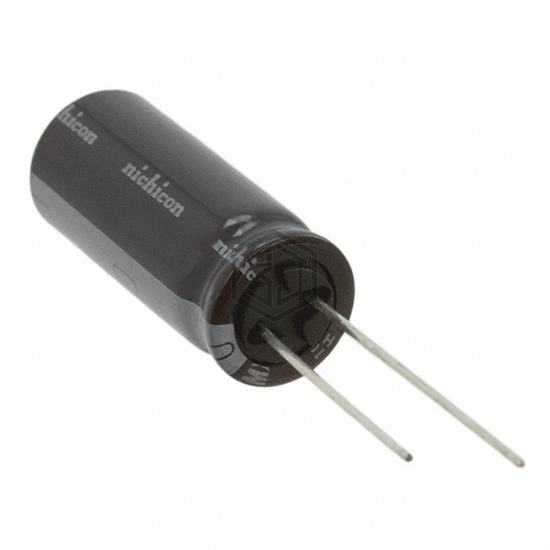

CAP ALUM 150UF 20% 160V RADIAL
UCY2C151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 8,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 905 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.81 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXG201ELL151ML25S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 90% | View |
| EKXJ221ELL151MM20S | United Chemi-Con | CAP ALUM 150UF 20% 220V RADIAL | 88% | View |
| 450HXW150MEFR18X35 | Rubycon | CAP ALUM 150UF 20% 450V RADIAL | 77% | View |
| 420HXW150MEFR16X40 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 76% | View |
| B43508C5157M7 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 71% | View |
| B43505C9157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 70% | View |
Submit your RFQ for UCY2C151MHD and get a quote within 24 hours.
