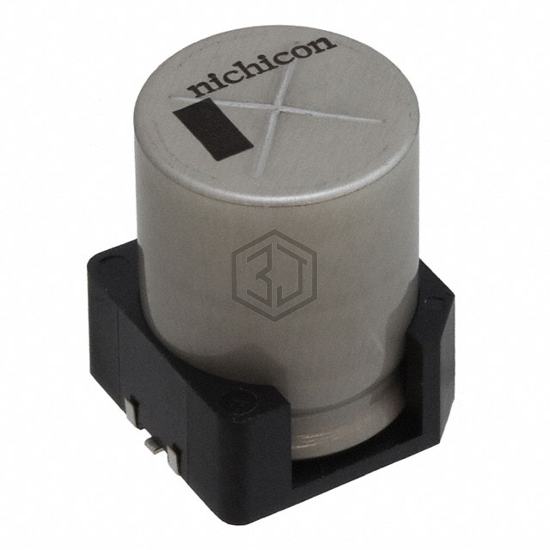

CAP ALUM 1500UF 20% 35V SMD
UCX1V152MNS6MS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,920
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCX1V152MNS6MS is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1V152MNQ6MS | Nichicon | CAP ALUM 1500UF 20% 35V SMD | 100% | View |
| VUX152M1VTR-1621S | Surge | CAP ALUM 35V POLAR | 100% | View |
| UCX1V152MNJ6MS | Nichicon | CAP ALUM 1500UF 20% 35V SMD | 100% | View |
| MAL216099006E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 89% | View |
| UCX1V152MNS1MS | Nichicon | CAP ALUM 1500UF 20% 35V SMD | 85% | View |
| UCX1V152MNJ1MS | Nichicon | CAP ALUM 35V POLAR | 85% | View |
