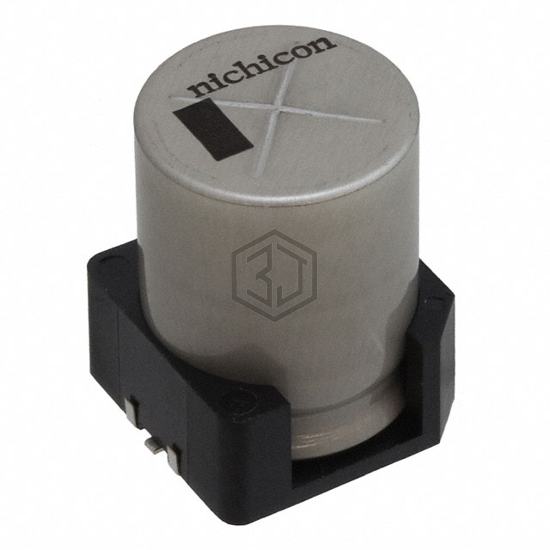

CAP ALUM 1000UF 20% 50V SMD
UCX1H102MNS1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 135°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,054
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 50mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCX1H102MNS1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1H122MNQ1MS | Nichicon | CAP ALUM 1200UF 20% 50V SMD | 85% | View |
| UCX1V122MNS1MS | Nichicon | CAP ALUM 1200UF 20% 35V SMD | 76% | View |
| UCX1V122MNQ1ZD | Nichicon | CAP ALUM 1200UF 20% 35V SMD | 76% | View |
| MAL226099005E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V SMD | 71% | View |
| VUJ102M1VTR-1821S | SURGE | CAP ALUM 1000UF 20% 35V SMD | 70% | View |
| VUJ102M1CTR-1616S | SURGE | CAP ALUM 1000UF 20% 16V SMD | 51% | View |
Submit your RFQ for UCX1H102MNS1ZD and get a quote within 24 hours.
