CAP ALUM 820UF 20% 25V SMD

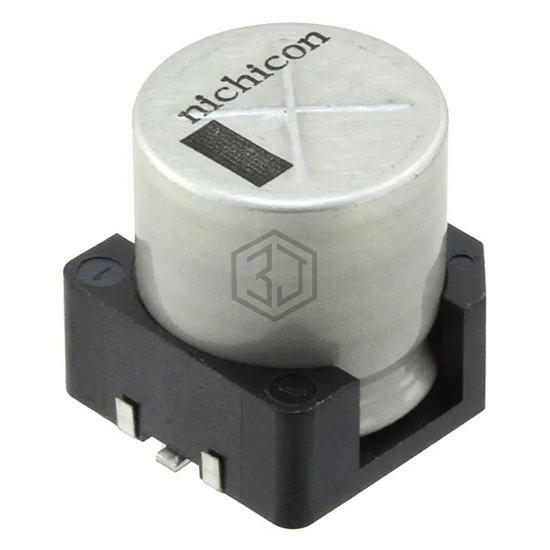

UCX1E821MNS1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,088
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 70mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UCX1E821MNS1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCX1E821MNQ1ZD | Nichicon | CAP ALUM 820UF 20% 25V SMD | 100% | View |
| UCX1E821MNJ1MS | Nichicon | CAP ALUM 820UF 20% 25V SMD | 100% | View |
| VUX821M1ETR-1313S | Surge | CAP ALUM 25V POLAR | 100% | View |
| UCX1V821MNQ1ZD | Nichicon | CAP ALUM 820UF 20% 35V SMD | 67% | View |
| UCX1V821MNJ1MS | Nichicon | CAP ALUM 820UF 20% 35V SMD | 67% | View |
| VUX821M1VTR-1616S | Surge | CAP ALUM 35V POLAR | 67% | View |
