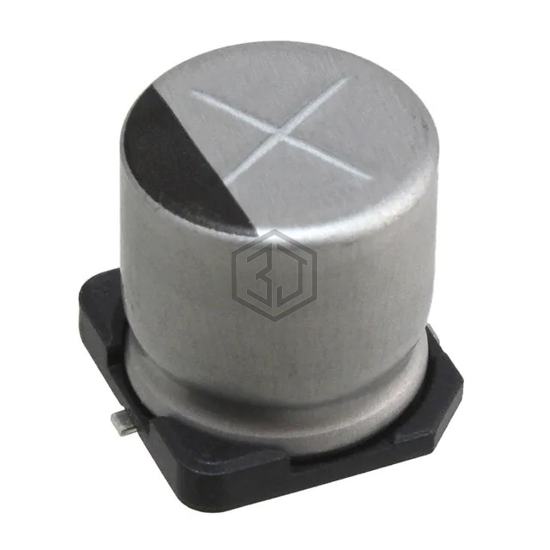

CAP ALUM 470UF 20% 25V SMD
UCW1E471MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZR471M1ETR-1010S | Surge | CAP ALUM 25V POLAR | 100% | View |
| EMVY250ADA471MJA0G | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 89% | View |
| UCL1C471MCL6GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 82% | View |
| EEE-FK1C471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 80% | View |
| UWD1C471MCL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 61% | View |
| EEE-FK1V471AQ | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V SMD | 60% | View |
