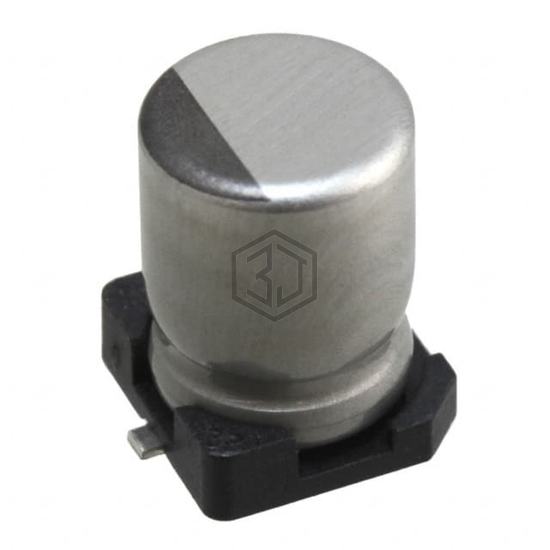

CAP ALUM 22UF 20% 25V SMD
UCW1E220MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 2.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES226M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 25V SMD | 78% | View |
| UUQ1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 77% | View |
| UWT1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 77% | View |
| AHA226M2AF24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V SMD | 75% | View |
| EEV-TG1K220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 80V SMD | 73% | View |
| AHA226M35C12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 71% | View |
Submit your RFQ for UCW1E220MCL1GS and get a quote within 24 hours.
