CAP ALUM 33UF 20% 10V SMD

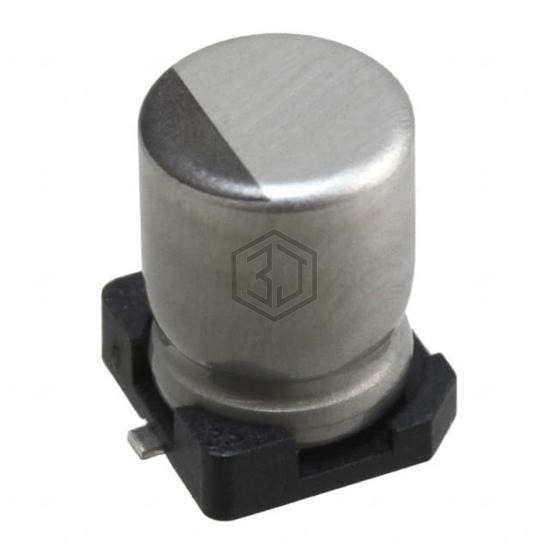

UCW1A330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,703
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 2.2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FN1A330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 94% | View |
| EEV336M6R3S9BAA | KEMET | CAP ALUM 33UF 20% 6.3V SMD | 79% | View |
| EEE-HAE330WAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 72% | View |
| EMLF100ADA330ME73G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 71% | View |
| UWD1A330MCL1GS | Nichicon | CAP ALUM 33UF 20% 10V SMD | 68% | View |
| EMLF350ADA330MF90G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 64% | View |
