CAP ALUM 150UF 20% 10V SMD

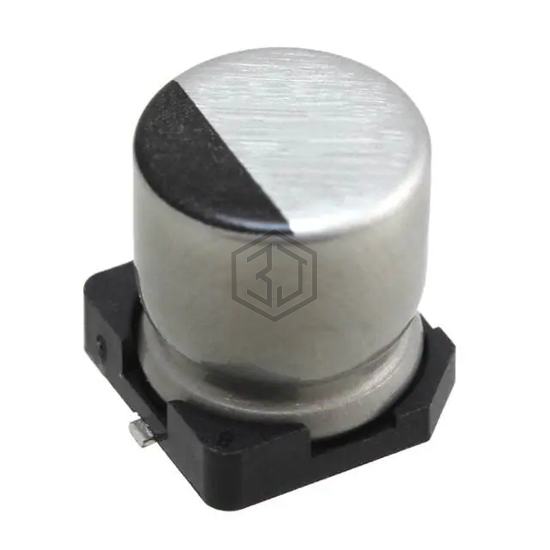

UCW1A151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,424
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
| Impedance | 1.1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZR100ARA151ME61G | United Chemi-Con | CAP ALUM 150UF 20% 10V SMD | 80% | View |
| UWT1C151MCL1GS | Nichicon | CAP ALUM 150UF 20% 16V SMD | 78% | View |
| EMZE160ADA151MF90G | United Chemi-Con | CAP ALUM 150UF 20% 16V SMD | 71% | View |
| EMVE160ADA151MF80G | United Chemi-Con | CAP ALUM 150UF 20% 16V SMD | 69% | View |
| UUD1A151MCL1GS | Nichicon | CAP ALUM 150UF 20% 10V SMD | 68% | View |
| EEE-FP1A151AV | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 57% | View |
Submit your RFQ for UCW1A151MCL1GS and get a quote within 24 hours.
