CAP ALUM 330UF 20% 6.3V SMD

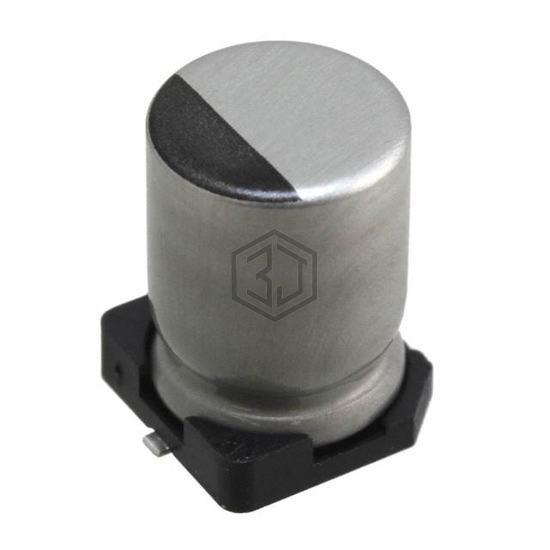

UCW0J331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,569
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZE6R3ADA331MF90G | United Chemi-Con | CAP ALUM 330UF 20% 6.3V SMD | 100% | View |
| EEE-FT0J331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 6.3V SMD | 81% | View |
| 865080149011 | Würth Elektronik | CAP ALUM 330UF 20% 6.3V SMD | 72% | View |
| EEE-FNA331XUV | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 70% | View |
| 50TPV330M10X10.5 | Rubycon | CAP ALUM 330UF 20% 50V SMD | 56% | View |
| UCL0J331MCL6GS | Nichicon | CAP ALUM 330UF 20% 6.3V SMD | 54% | View |
Submit your RFQ for UCW0J331MCL1GS and get a quote within 24 hours.
