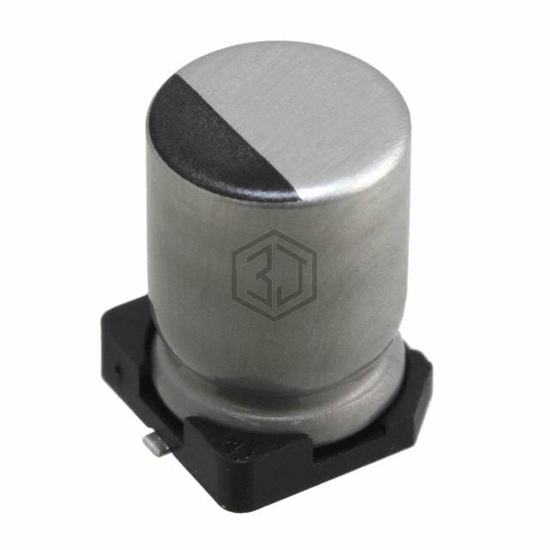

CAP ALUM 220UF 20% 6.3V SMD
UCW0J221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3SJV220M6.3X8 | Rubycon | CAP ALUM 220UF 20% 6.3V SMD | 88% | View |
| EMK0JM221E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 83% | View |
| EEE-FK0J221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 77% | View |
| EEE-TP1C221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 65% | View |
| EEE-FK1A221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 64% | View |
| EMLF350ADA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 64% | View |
Submit your RFQ for UCW0J221MCL1GS and get a quote within 24 hours.
