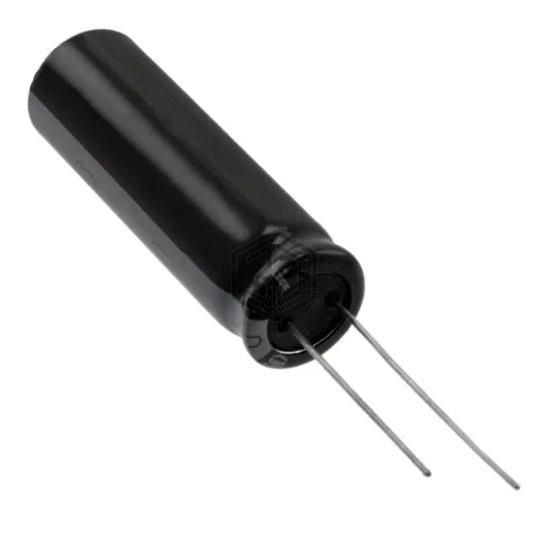

CAP ALUM 68UF 20% 450V RADIAL
UCS2W680MNY9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,424
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.34 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ421ELL680MU40S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL | 93% | View |
| UCS2V680MHD6 | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 91% | View |
| B43252D6686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 500V SNAP | 75% | View |
| EKMM401VNN680MP25U | United Chemi-Con | CAP ALUM 68UF 20% 400V SNAP | 74% | View |
| 35ZLH68MEFC6.3X11 | Rubycon | CAP ALUM 68UF 20% 35V RADIAL | 56% | View |
| EEU-EB2C680S | Panasonic Electronic Components | CAP ALUM 68UF 20% 160V RADIAL | 53% | View |
