CAP ALUM 68UF 20% 450V RADIAL

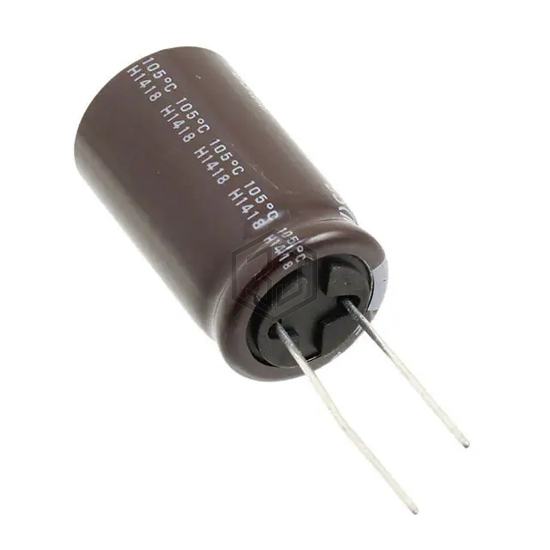

UCS2W680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,691
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 787.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.575 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXW68MEFR16X35 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 95% | View |
| 475MXH68MEFCSN22X25 | Rubycon | CAP ALUM 68UF 20% 475V SNAP | 82% | View |
| B43504A9686M002 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 400V SNAP | 78% | View |
| LGU2G680MELY | Nichicon | CAP ALUM 68UF 20% 400V SNAP | 72% | View |
| EEU-ED2V680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 350V RADIAL | 70% | View |
| B41888C8686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for UCS2W680MHD and get a quote within 24 hours.
