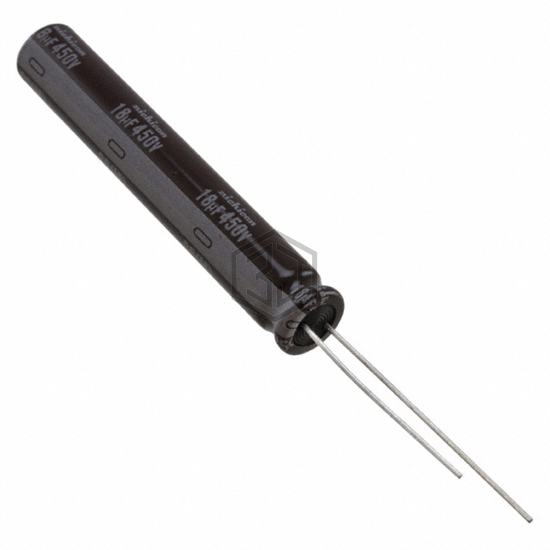

CAP ALUM 18UF 20% 450V RADIAL
UCS2W180MND9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,354
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCS2W180MND9 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ421ELL180MJ30S | United Chemi-Con | CAP ALUM 18UF 20% 420V RADIAL | 96% | View |
| UVC2G180MPD1TD | Nichicon | CAP ALUM 18UF 20% 400V RADIAL | 92% | View |
| 350BXW18MEFR10X16 | Rubycon | CAP ALUM 18UF 20% 350V RADIAL | 84% | View |
| 250LEX18MEFC10X16 | Rubycon | CAP ALUM 18UF 20% 250V RADIAL | 62% | View |
| 30D186M035BA2A | Vishay Sprague | CAP ALUM 18UF 20% 35V AXIAL | 56% | View |
| 63ZLH18MEFCTA5X11 | Rubycon | CAP ALUM 18UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for UCS2W180MND9 and get a quote within 24 hours.
