CAP ALUM 15UF 20% 450V RADIAL

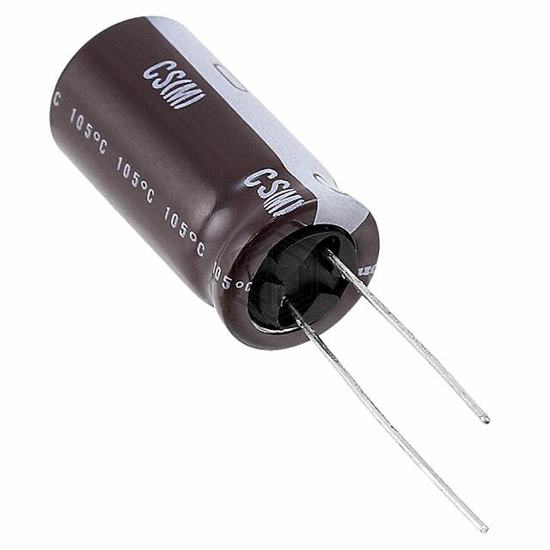

UCS2W150MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2W150MHD | Nichicon | CAP ALUM 15UF 20% 450V RADIAL | 100% | View |
| UCY2H150MHD1TO | Nichicon | CAP ALUM 15UF 20% 500V RADIAL | 82% | View |
| UCY2W150MPD | Nichicon | CAP ALUM 15UF 20% 450V RADIAL | 77% | View |
| UCYW6150MPD | Nichicon | CAP ALUM 15UF 20% 420V RADIAL | 75% | View |
| EEU-EE2V150 | Panasonic Electronic Components | CAP ALUM 15UF 20% 350V RADIAL | 73% | View |
| 30D156M160DD5A | Vishay Sprague | CAP ALUM 15UF 20% 160V AXIAL | 56% | View |
Submit your RFQ for UCS2W150MHD1TO and get a quote within 24 hours.
