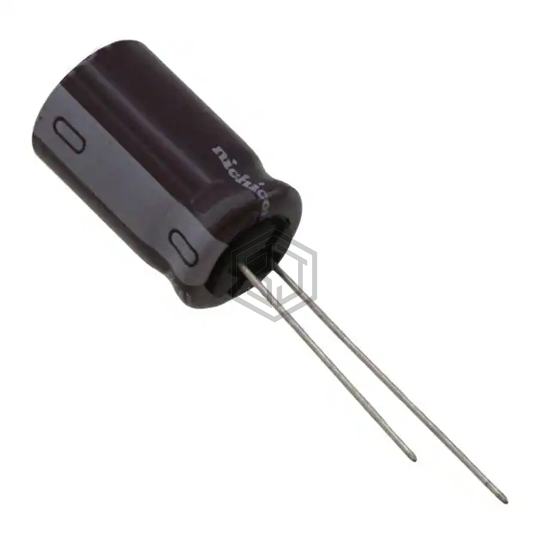

CAP ALUM 10UF 20% 450V RADIAL
UCS2W100MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXC10MEFC10X16 | Rubycon | CAP ALUM 10UF 20% 450V RADIAL | 100% | View |
| EEU-EE2W100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 450V RADIAL | 91% | View |
| EEU-ED2G100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 400V RADIAL | 84% | View |
| URZ2G100MHD1TN | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 64% | View |
| UVC2G100MPD1TD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 63% | View |
| ECA-1CHG100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UCS2W100MHD and get a quote within 24 hours.
