CAP ALUM 82UF 20% 350V RADIAL

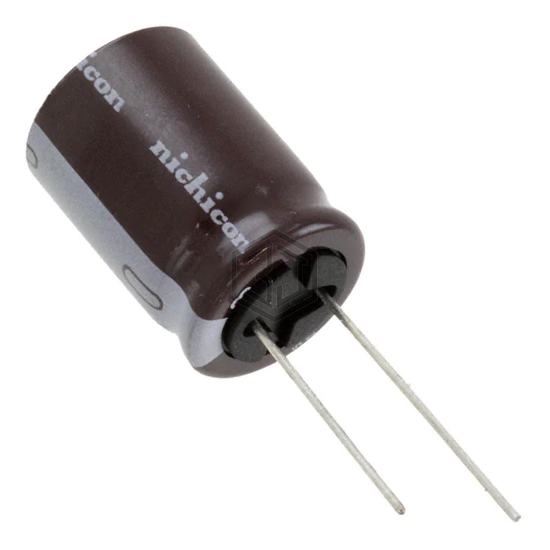

UCS2V820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 8,115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 765 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS800M350AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 80UF 20% 350V FLATPACK | 84% | View |
| THAS800M450AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 80UF 20% 450V FLATPACK | 76% | View |
| 400CXW82MEFR14.5X31.5 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 75% | View |
| 601D826F200FL1 | Vishay Sprague | CAP ALUM 82UF 200V AXIAL | 73% | View |
| 100ZLH82MEFCT810X20 | Rubycon | CAP ALUM 82UF 20% 100V RADIAL | 56% | View |
| 600D806G060DJ4E3 | Vishay Sprague | CAP ALUM 80UF 60V AXIAL | 54% | View |
Submit your RFQ for UCS2V820MHD and get a quote within 24 hours.
