CAP ALUM 47UF 20% 350V RADIAL

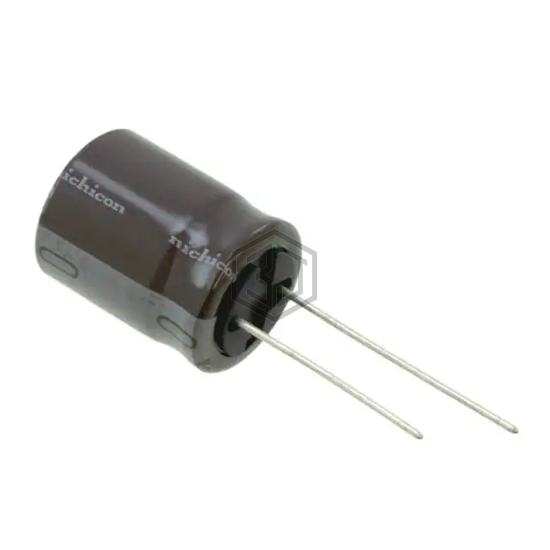

UCS2V470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,254
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.08 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V470MHD | Nichicon | CAP ALUM 47UF 20% 350V RADIAL | 97% | View |
| EKXL421ELL470MJ45S | United Chemi-Con | CAP ALUM 47UF 20% 420V RADIAL TH | 89% | View |
| UCY2D470MHD3TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 78% | View |
| MAL213668479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
| 672D476H025CC5IE3 | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 56% | View |
| 600D476G050DE4 | Vishay Sprague | CAP ALUM 47UF 50V AXIAL | 56% | View |
Submit your RFQ for UCS2V470MHD and get a quote within 24 hours.
