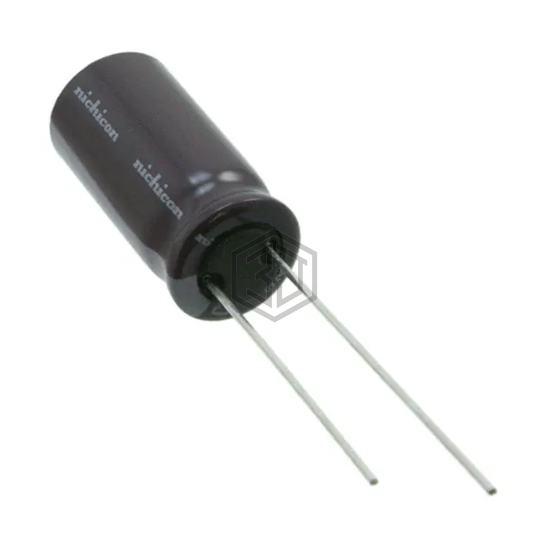

CAP ALUM 10UF 20% 350V RADIAL
UCS2V100MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,549
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215236109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 400V RADIAL | 69% | View |
| MAL215237109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 68% | View |
| ECA-1CHG100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V RADIAL | 56% | View |
| 510D106M035AA5D | Vishay Sprague | CAP ALUM 10UF 20% 35V RADIAL | 56% | View |
| MAL211658109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 63V RADIAL | 54% | View |
| MAL215232109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 200V RADIAL | 53% | View |
Submit your RFQ for UCS2V100MPD and get a quote within 24 hours.
