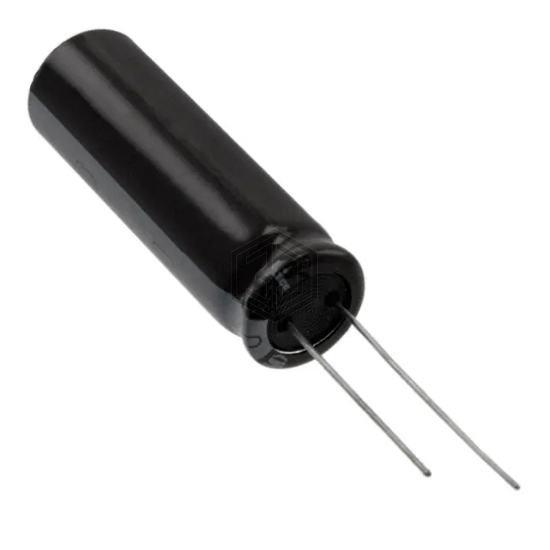

CAP ALUM 82UF 20% 400V RADIAL
UCS2G820MNY9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,062
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ401ELL820MUP1S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| B43642A5826M000 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 90% | View |
| B43504A5826M80 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 89% | View |
| EKXJ221ELL820MJ35S | United Chemi-Con | CAP ALUM 82UF 20% 220V RADIAL | 68% | View |
| UCY2C820MPD9 | Nichicon | CAP ALUM 82UF 20% 160V RADIAL | 58% | View |
| 610D826G050DR5 | Vishay Sprague | CAP ALUM 82UF 50V AXIAL | 56% | View |
