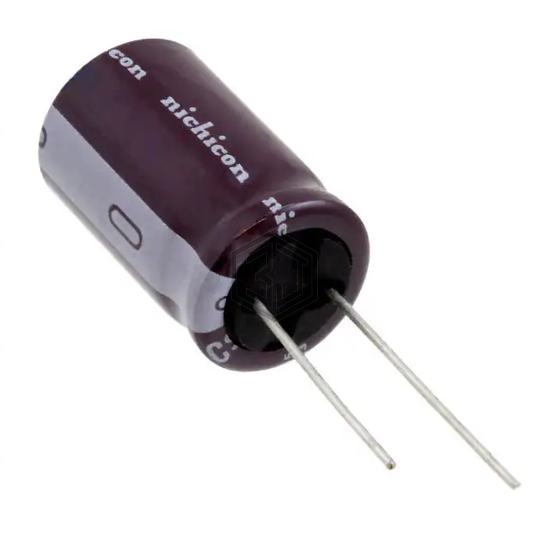

CAP ALUM 47UF 20% 400V RADIAL
UCS2G470MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 3,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.18 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW47MEFR10X45 | Rubycon | CAP ALUM 47UF 20% 400V RADIAL TH | 91% | View |
| UCYW6470MHD3 | Nichicon | CAP ALUM 47UF 20% 420V RADIAL | 89% | View |
| 350BXW47MEFR12.5X25 | Rubycon | CAP ALUM 47UF 20% 350V RADIAL | 86% | View |
| MAL215236479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 400V RADIAL | 71% | View |
| MAL215233479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 60% | View |
| VHT47M50 | NTE Electronics, Inc | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UCS2G470MHD1TN and get a quote within 24 hours.
