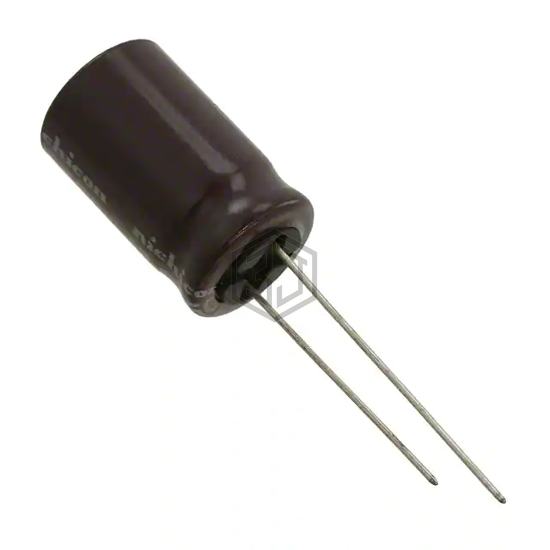

CAP ALUM 47UF 20% 250V RADIAL
UCS2E470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07LW247X41K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% SNAP | 100% | View |
| EKXF451ELL470MM25S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL TH | 77% | View |
| 400TXW47MEFR12.5X30 | Rubycon | CAP ALUM 47UF 20% 400V RADIAL | 74% | View |
| B43504A9476M62 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V SNAP | 73% | View |
| URZ2E470MHD | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | 71% | View |
| PEG124RF2470QE4 | KEMET | CAP ALUM 47UF 20% 200V AXIAL | 58% | View |
Submit your RFQ for UCS2E470MHD and get a quote within 24 hours.
