CAP ALUM 82UF 20% 200V RADIAL

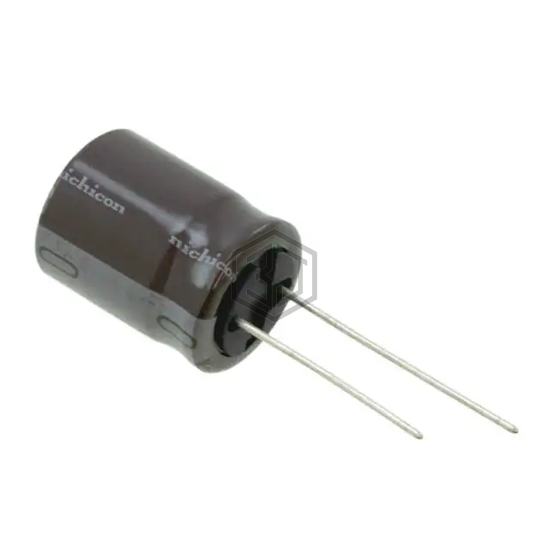

UCS2D820MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 6,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2D820MHD | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 97% | View |
| 80TXW82MEFC6.3X40 | Rubycon | CAP ALUM 82UF 20% 80V RADIAL | 75% | View |
| 400HXW82MEFR10X60 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 72% | View |
| MAL219327829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 450V SNAP | 72% | View |
| B43508A5826M87 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 66% | View |
| B43508A5826M80 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 66% | View |
Submit your RFQ for UCS2D820MHD and get a quote within 24 hours.
