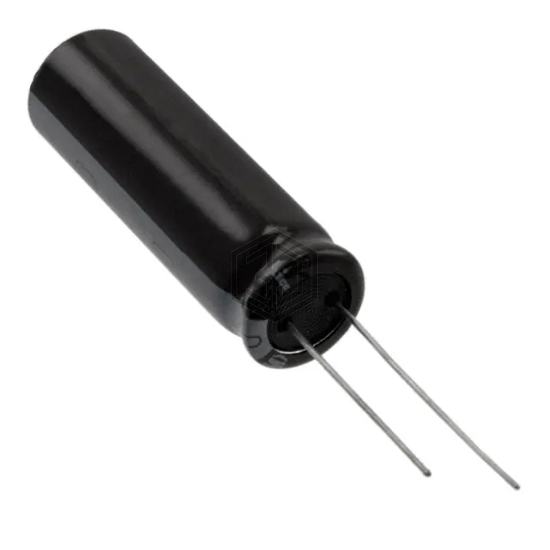

CAP ALUM 150UF 20% 200V RADIAL
UCS2D151MND9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,334
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.66 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2D151MHD | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 93% | View |
| LGJ2E151MELA15 | Nichicon | CAP ALUM 150UF 20% 250V SNAP | 78% | View |
| EEU-FR1H151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 50V RADIAL | 70% | View |
| B43504B5157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 70% | View |
| EEU-FR1J151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V RADIAL | 66% | View |
| B43505A5157M82 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 65% | View |
