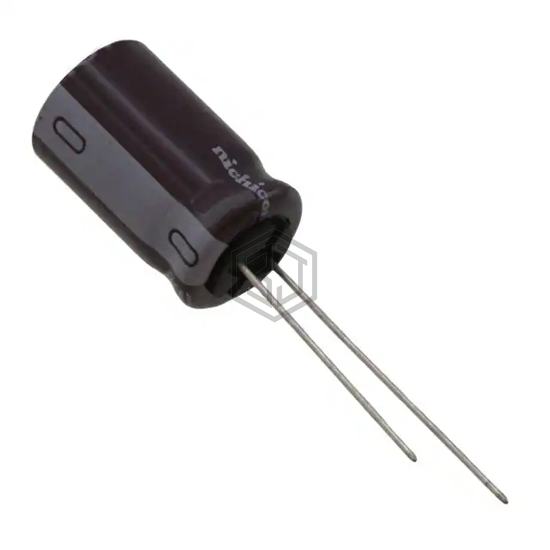

CAP ALUM 68UF 20% 160V RADIAL
UCS2C680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 3,477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.18 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LXW68MEFR18X20 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 77% | View |
| 200WXA68MEFCGC16X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 74% | View |
| MAL225959689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 72% | View |
| 450BXW68MEFR14.5X35 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 71% | View |
| EKWA421ELL680MUN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 71% | View |
| 450QXW68MEFR14.5X31.5 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 70% | View |
Submit your RFQ for UCS2C680MHD and get a quote within 24 hours.
