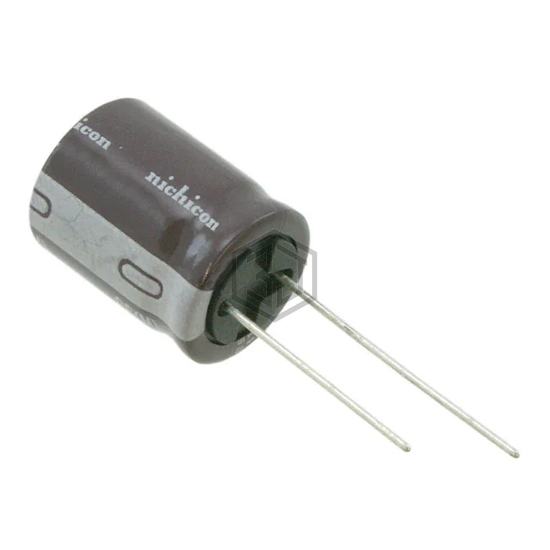

CAP ALUM 100UF 20% 160V RADIAL
UCS2C101MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 4,889
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 710 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.42 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 160BXG100MEFC12.5X25 | Rubycon | CAP ALUM 160V POLAR | 97% | View |
| B41693A9107Q7 | EPCOS - TDK Electronics | CAP ALUM 100UF 100V AXIAL | 78% | View |
| 30D107M200LS2A | Vishay Sprague | CAP ALUM 100UF 20% 200V AXIAL | 77% | View |
| EKXN351ELL101MM20S | Chemi-Con | CAP ALUM 350V POLAR | 76% | View |
| EKXN401ELL101ML25S | Chemi-Con | CAP ALUM 400V POLAR | 74% | View |
| ULM100M6.3 | NTE Electronics, Inc | CAP ALUM 100UF 20% 6.3V RADIAL | 56% | View |
Submit your RFQ for UCS2C101MHD6TN and get a quote within 24 hours.
