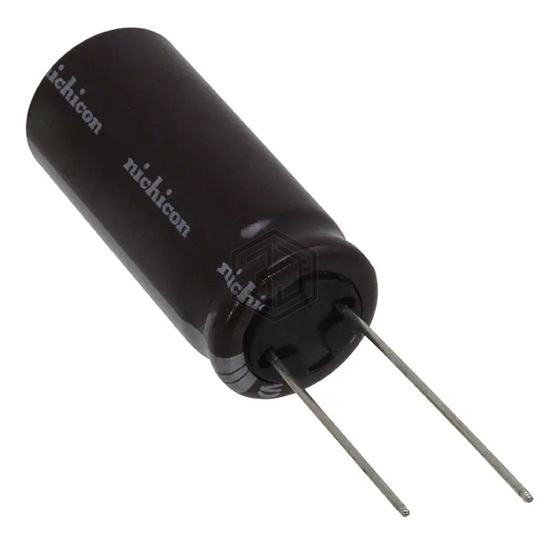

CAP ALUM 120UF 20% 420V RADIAL
UCPW6121MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 4,382
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.17 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450CXW120MEFR14.5X50 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 97% | View |
| 861141485014 | Würth Elektronik | CAP ALUM 120UF 20% 450V SNAP | 96% | View |
| 861111484016 | Würth Elektronik | CAP ALUM 120UF 20% 450V SNAP | 95% | View |
| 400VXR120MEFC30X25 | Rubycon | CAP ALUM 120UF 20% 400V SNAP | 95% | View |
| ELXM351VSN121MP30S | United Chemi-Con | CAP ALUM 120UF 20% 350V SNAP | 93% | View |
| 420LXW120MEFR14.5X45 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 88% | View |
Submit your RFQ for UCPW6121MHD and get a quote within 24 hours.
