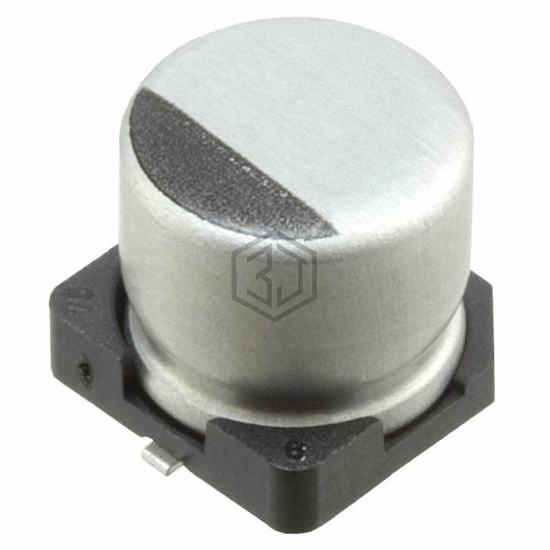

CAP ALUM 100UF 20% 35V SMD
UCM1V101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 260 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1V101XP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 88% | View |
| AEA0810101M050R | KYOCERA AVX | ALUMINUM CAP | 83% | View |
| AVEZ107M25X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 79% | View |
| AFK107M25X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 79% | View |
| UL107M050HGKTA | Aillen | CAP. ALUM 100UF 50V 20% SMD | 67% | View |
| EXV107M6R3S9GAA | KEMET | CAP ALUM 100UF 20% 6.3V SMD | 66% | View |
Submit your RFQ for UCM1V101MCL1GS and get a quote within 24 hours.
