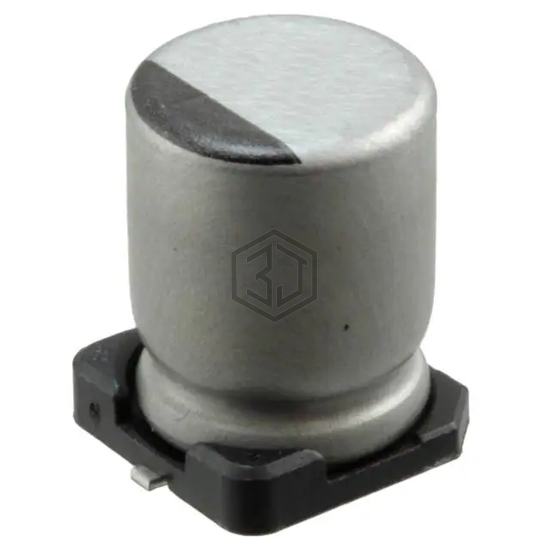

CAP ALUM 220UF 20% 50V SMD
UCM1H221MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY630GTR221MLH0S | United Chemi-Con | CAP ALUM 220UF 20% 63V SMD | 85% | View |
| UWG1C221MNL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 80% | View |
| UWG1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 80% | View |
| EEE-FTE221XAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 73% | View |
| UWZ1H221MCL1GS | Nichicon | CAP ALUM 220UF 20% 50V SMD | 73% | View |
| MAL214699708E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 80V SMD | 72% | View |
Submit your RFQ for UCM1H221MNL1GS and get a quote within 24 hours.
