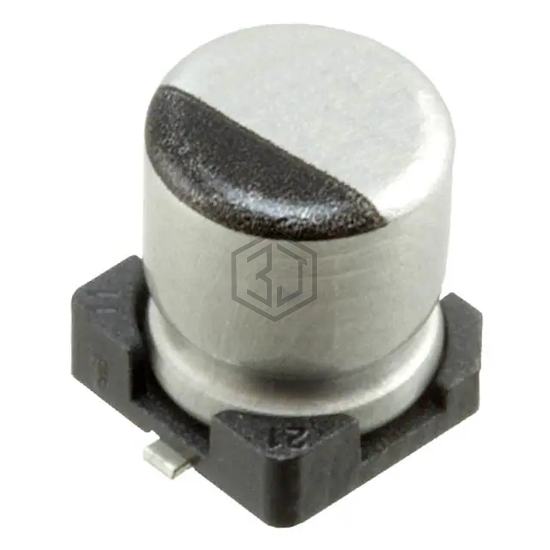

CAP ALUM 10UF 20% 50V SMD
UCM1H100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 82.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 100 kHz |
| Impedance | 880 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1H100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 92% | View |
| EEE-FK1H100UR | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V SMD | 74% | View |
| AFK106M50C12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 74% | View |
| EEE-FN1J100V | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V SMD | 65% | View |
| UCM1H100MCL6GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 61% | View |
| EEV106M025S9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 54% | View |
