CAP ALUM 470UF 20% 25V SMD

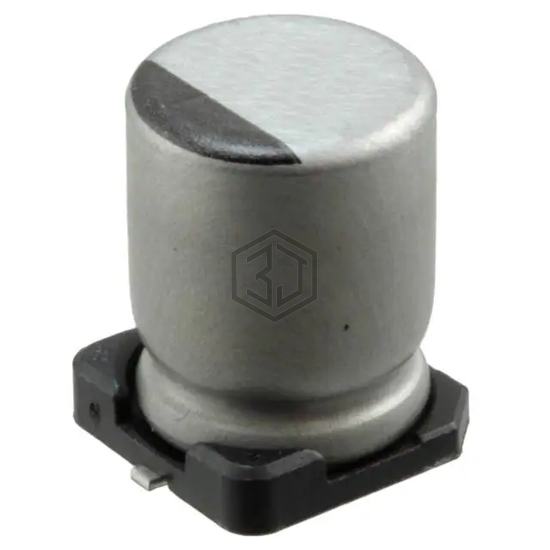

UCM1E471MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,816
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV477M025A9PAA | KEMET | CAP ALUM 470UF 20% 25V SMD | 93% | View |
| UCL1A471MNL1GS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 82% | View |
| UWZ1E471MCL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 76% | View |
| EEE-FP0J471AL | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 73% | View |
| EMVY630GDA471MLN0S | United Chemi-Con | CAP ALUM 470UF 20% 63V SMD | 70% | View |
| MAL215099818E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 59% | View |
Submit your RFQ for UCM1E471MNL1GS and get a quote within 24 hours.
