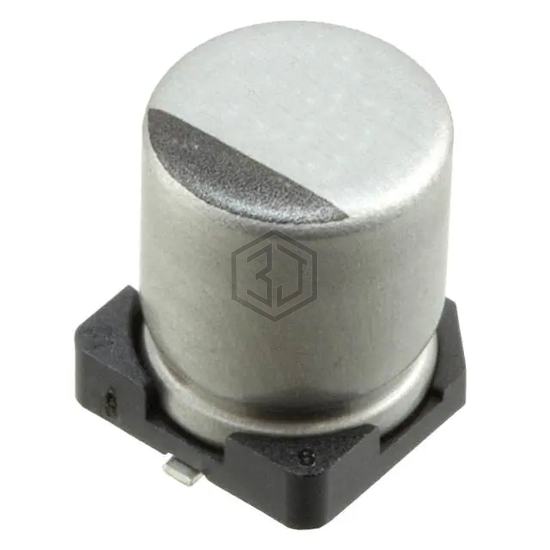

CAP ALUM 150UF 20% 25V SMD
UCM1E151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,894
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FTV151XAL | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V SMD | 84% | View |
| AFK157M35F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 35V SMD | 78% | View |
| MAL214699105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 50V SMD | 71% | View |
| EEE-FK1H151P | Panasonic Electronic Components | CAP ALUM 150UF 20% 50V SMD | 67% | View |
| EXV157M035A9PAA | KEMET | CAP ALUM 150UF 20% 35V SMD | 66% | View |
| EEV157M016A9HAA | KEMET | CAP ALUM 150UF 20% 16V SMD | 54% | View |
Submit your RFQ for UCM1E151MCL1GS and get a quote within 24 hours.
