CAP ALUM 680UF 20% 16V SMD

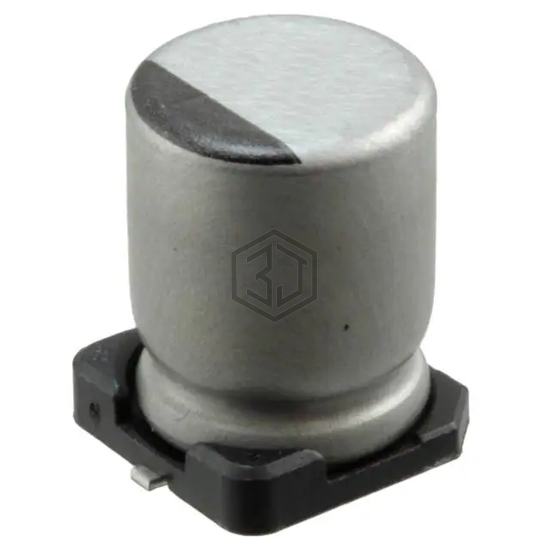

UCM1C681MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1C681AL | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V SMD | 93% | View |
| UUE1C681MNS1MS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 85% | View |
| UCL1C681MNL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 83% | View |
| UWT1C681MNL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 78% | View |
| EEE-FP1A681AV | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 78% | View |
| EEE-FK1A681V | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V SMD | 76% | View |
