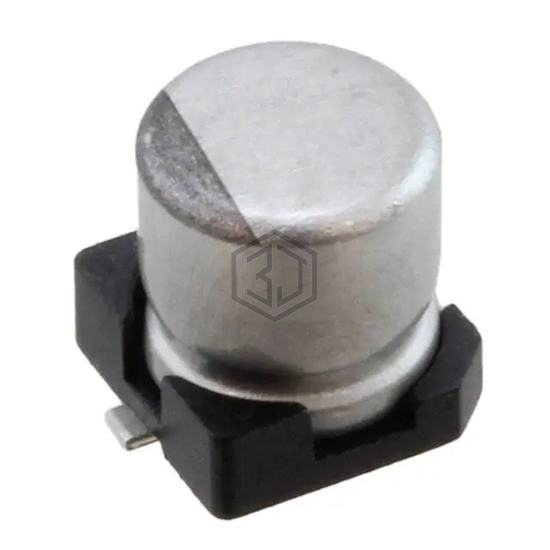

CAP ALUM 47UF 20% 16V SMD
UCM1C470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV476M016S9DAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 93% | View |
| EEE-FKC470UAR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 90% | View |
| EMVY250ADA470MF55G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 78% | View |
| AEH0810470M050R | KYOCERA AVX | ALUMINUM CAP | 74% | View |
| 476SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 50V SMD | 72% | View |
| CED1E470MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
Submit your RFQ for UCM1C470MCL1GS and get a quote within 24 hours.
